Wi-fi magnetic charging may be fairly handy. Simply plop your cellphone down on the magnet, and juice up. Now think about that very same comfort, simply with a kickstand on your ebike as an alternative of your cellphone. Whereas the TILER system appears fairly useful for particular person ebike homeowners, the system makes much more sense when you think about charging a fleet of ebikes, all with a single charging system.

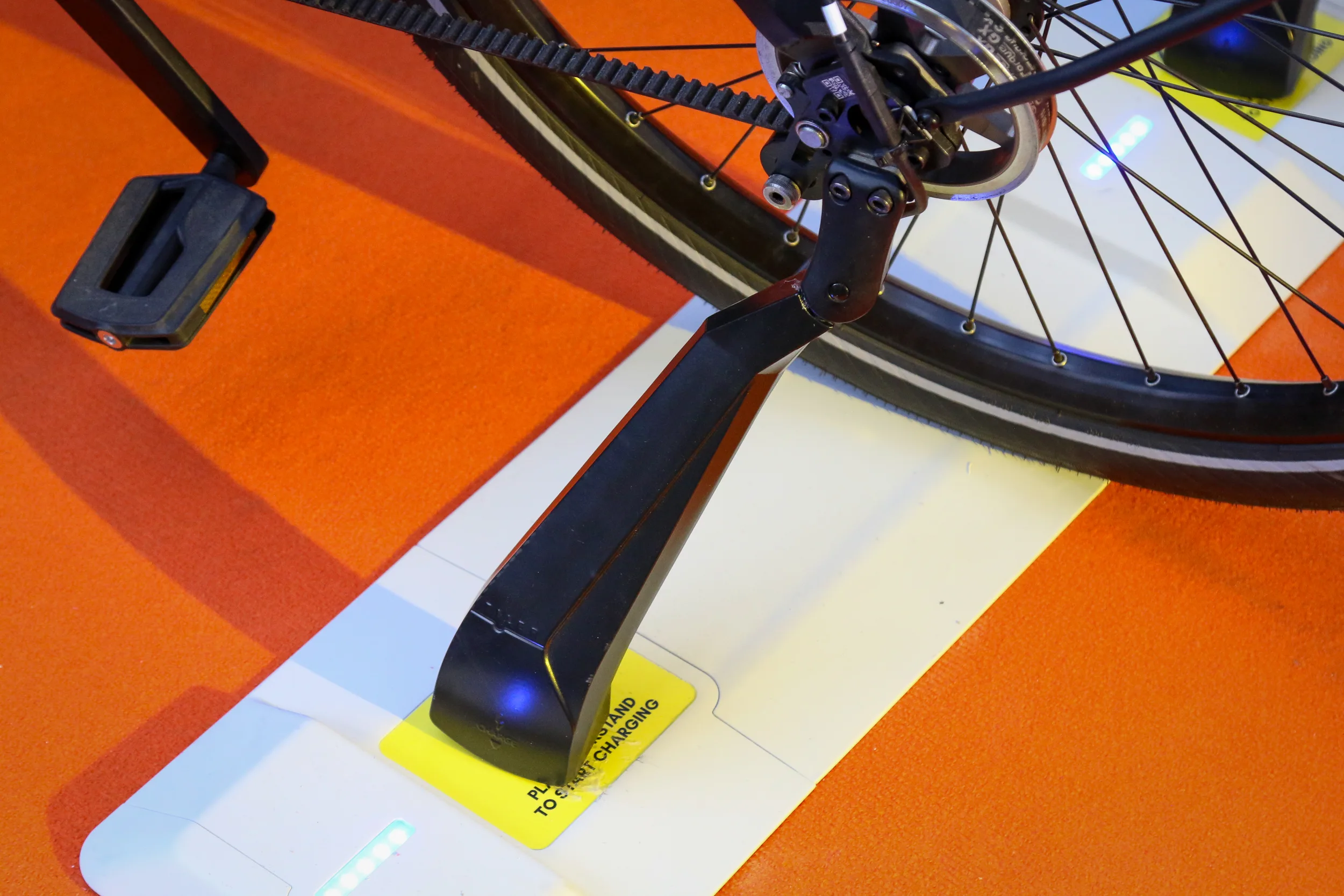

The idea behind TILER is fairly easy. Mount a common charging kickstand to your bike, hardwire it to the ebike motor, after which park your ebike on the charging tile with the kickstand. When the kickstand makes contact with the tile, it makes use of a wi-fi magnetic charging system to recharge your ebike.
Bought as an aftermarket resolution, TILER states that the system is presently suitable with about 75% of present ebikes together with GoBao, Bosch, Yamaha, Bafang, Zehus, and extra (TILER states they’ll get in contact to be sure you get the right cable on your bike). In early improvement, the bottom of the know-how has already been used extensively all through Western Europe with 200+ TILER Uno charging factors already put in. TILERās imaginative and prescient is that with the brand new TILER Compact, people can use the charging tiles of their properties, or bike outfitters can use as much as 24 Tiles in an interlocking strip to energy fleets of ebikes.
In comparison with Uno, the TILER Compact doesn’t require any set up and can be utilized just by laying it on the ground, or you may also bodily mount it to the ground to forestall it from shifting or being taken. The 8mm thick tiles declare to cost an ebike on the identical velocity as a cable charger, and the system is designed to solely cost ebike batteries to 80% whereas monitoring battery temperature for optimum battery well being.
Dimensions: 260 x 245 x 15 mm
Weight: 2 kg
Charging time: 3,5 hours (examined on a 500Wh 36VĀ battery)
Weatherproof: IP67
Charging Energy: 150 W

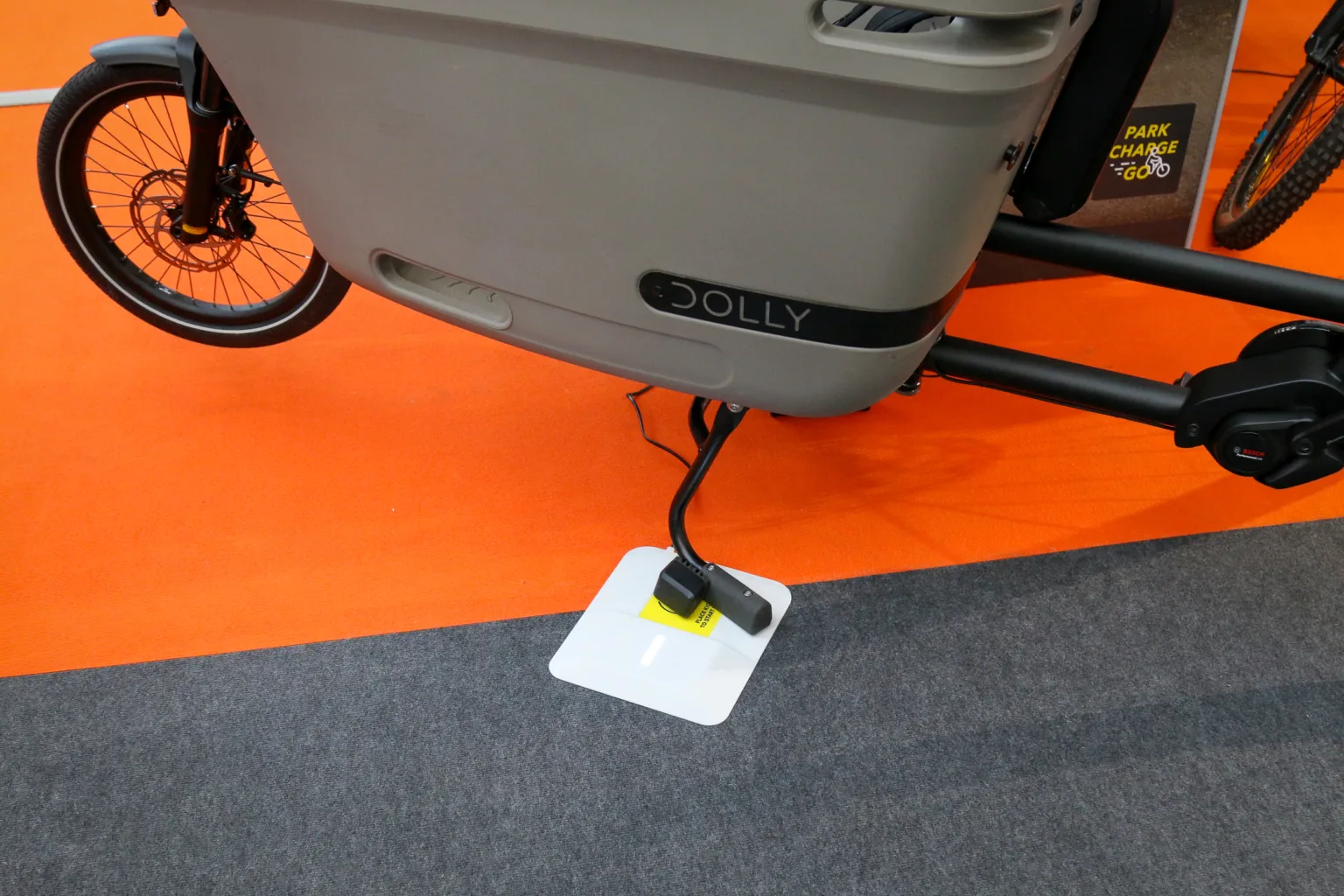

Designed to work with most ebikes, there are two variations of the brand new TILER Compact ā a typical rear-mounted kickstand charger or a middle stand Cargo CUBE. The middle stand choice ought to be excellent for e-cargo bike charging and would be certain your cargo bike is at all times able to go after parking. TILER can be engaged on a brand new model of the rear-mount kickstand with smaller electronics and slimmer type.
TILER is launching via a preorder that requires a ā¬29 down fee, with the ultimate manufacturing model anticipated to promote for round ā¬275 for the Tile and kickstand set.
tilercharg.com
